High Speed Carton Box Die Cutting Machine 60-180pcs/Min Making Corrugated

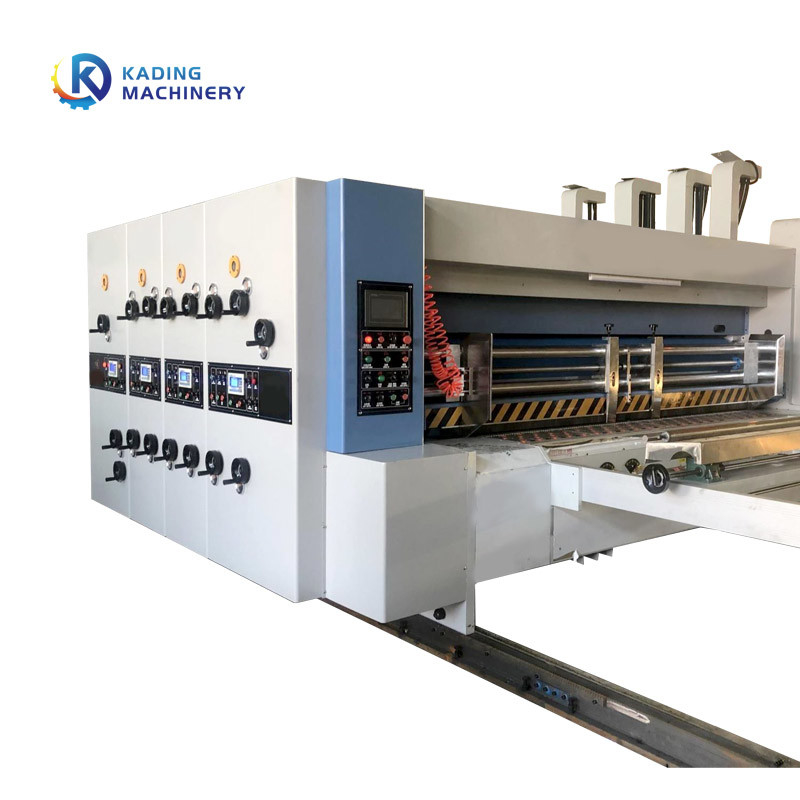

High Speed 60-180pcs/Min Carton Box Die Cutting Machine For Making Corrugated Box

With the continuous development and progress of machines, our packaging machinery products have also ushered in machine changes. This machine we launched uses fully automatic technology, and the production efficiency has been greatly improved, both from the perspective of cardboard printing and carton forming. In terms of performance, we are almost perfect and have won the favor of many manufacturers.

Specification

*Machine's specification is subject to the final confirmation of seller and buyer.

Features:

Carton Box Die Cutting Machine by paper feeding, printing, can complete three-layer, five-layer corrugated board printing, and other processes.Wall panel 40 mm after intermediate frequency tempering internal stress, increased wall panel density, hardness, strength, toughness, and conduction properties, artificial aging treatment, large machining center in pairs processing, high strength, high precision.

Product description:

Carton Box Die Cutting Machine with the transmission system is all forged by gear transmission 45 and processed by quality adjustment and refined tooth shaving process Bearing using C&U, Harbin, and other international famous brand bearings, one by one inspection, qualified standards into storage.Main unit clutch electric with alarm bell, continuous ring warning when clutch, ensure operator safety.Main motor frequency conversion start, motor using frequency conversion motor, DELIXI frequency converter. Electrical appliances using Schneider, and other famous brand products.Main motor frequency conversion start, motor using frequency conversion motor,ZHENGXUAN frequency converter. Electrical appliances using Schneider, CHINT and other famous brand products.Pneumatic components using AirTAC and other famous brand products, diaphragm pump using GUANGZHOU BULANMEI brand products.The ink on this machine is uniform, the ink quantity is controllable, prevents the ink overflow, ensures the ink road outside clean,sanitary.

Advantage:

Carton Box Die Cutting Machine have high-precision straight tooth transmission, made of 40CrMnTi high-quality alloy steel and quenched. High-precision gear grinding and other process sections, six levels of precision. The transmission gear has high strength, good wear resistance and stable operation. Lubrication adopts a closed spray lubrication system to ensure transmission accuracy and longevity. Smooth operation, low noise, hardness HRC58∽62, long life, and can achieve long-term printing registration. Produced by Jiangxi Jinglong Seiko, the gear quality is guaranteed for five years.The shaft and gear are connected by a tensioned connection sleeve, which is keyless. There will be no gap when using with high torque. It is more convenient to install and maintain. The long-term transmission accuracy is high and printing registration is guaranteed.

After-sales service:

Installation and debugging: Factory professionals support door-to-door installation, but the buyer needs to provide support. The installation height and operation training are the responsibility of the supplier's engineering and technical personnel. The buyer must prepare the foundation and other preparations in advance according to the supplier's requirements. Service commitment: 20 days after the machine leaves the factory or 12 months from the date of completion of commissioning. Exceptions are due to human factors on the part of the purchaser or lack of normal maintenance and normal wear and tear.

Carton Printer Slotter Die-cutter Machine Description

Lead Edge Feeding Unit

1.Lead edge feeder with vacuum transfer;

2.The sliding seat on the feeding table is made of aluminum; alloy, which keep the machine work more smoothly

and vibrate less;

3.The paper feeding table is steel material. The wall is strong and durable;

4.Automatically count the production quantities. touch screen display;

5.Equipped with electronic, pneumatic control of skip paper feeding, in order to cope with the larger size cardboard;

transport, customers can choose to continue or skip delivery

6.The paper carrying is controlled by the cylinder, in the slotting part and stacker are provided with interlocking control

switch, as to realize the emergency stop, stop or restore the paper feeding.

REAR/LEFT/RIGHT BAFFLE
1.The pneumatic side flap device (operating side) allows flap frequency to be set on the screen.
2.The rear paper -holding frame and the front/left/right side baffles are adopted with electrical adjustment.

SEPARATION AND CLOSING
1.The machine is separation and combined with electric control device and automatic alarm bell.
2.The whole machine is fixed on the track by the main lock cylinder of the feeding part.

FEEDING ROLLER
1.The cardboard feeding rubber rolls are made of solid steel covered by wear-resistant rubber.
2.The paper feed roller adopts embossing roller, and the surface is plated with hard chromium, so that it is

wear-resistant and smooth.

ZEROING DEVICE
With zeroing and phase memory function, to ensure correct position, reduce cardboard waste.

DUST REMOVAL DEVICE
The feeding unit have a dust brush and suction. It can remove the dust on the surface effectively to ensure the

clarity of the printing, and reduce paper waste.

Printing Unit

VACUUM SUCTION BLOWER
1.With skip feeding function attached to vacuum suction box. All suction wheels are made of ceramic material.
2.The vacuum suction box uses light pressure setting to improve printing quality.
3.The printing pressure adopt European special high inking technology of piston type regulating 0.015 to ensure

accurate to avoid the paste version problems.

INK SUPPLY SYSTEM
1.The use of one-way pneumatic diaphragm pump automatic circulation of ink, and the anilox roller and printing

plate inking system is electric adjustment.
2.Using filter to get rid of the impurity and protect the printing quality.
3.The inking bucket is made of stainless steel.
4.The ink bucket adopts special nanotechnology, non-stick ink, easy to clean.

PHASE ADJUSTMENT STRUCTURE
1.Adopts high precision planetary gear mechanism.
2.Printing phase is adjusted by PLC, touch screen and electric control 360 degrees adjustment
3.The brake motor has phase adjustment, and phase adjustment wheel can make accurate positioning.

PHASE FIXING SYSTEM
Use clutch or phase adjustment, keeping the original gear meshing point unchanged.

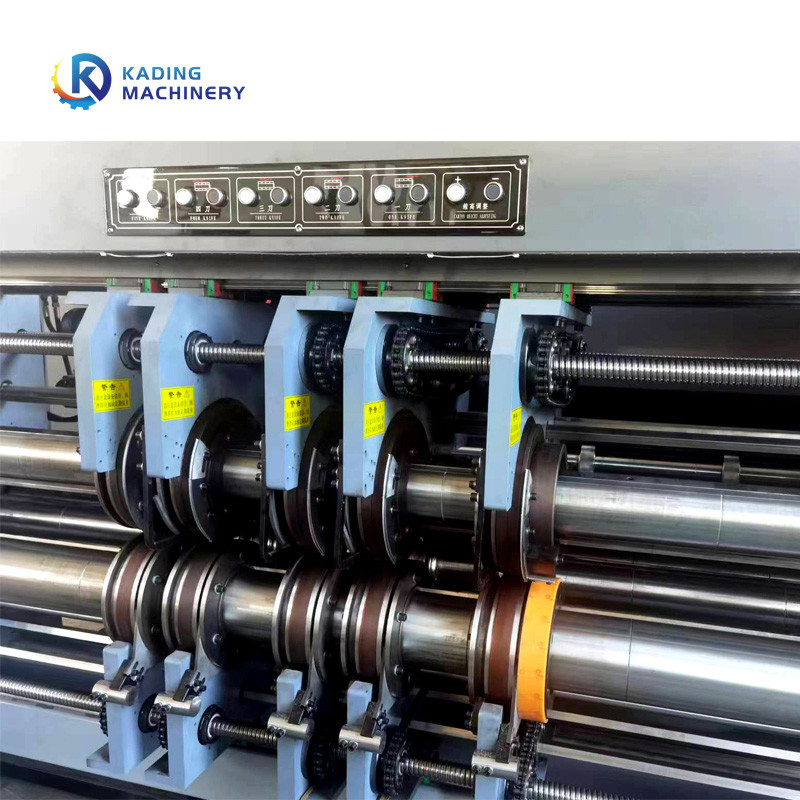

Slotting Unit

CUTTING HOLDER
1.The thickness of slotting knife is 7mm. Imported high quality alloy steel heat treated crescentate blade,

which has the advantages of high hardness, good toughness, strong wear resistance and so on.
2.The slotting shaft is hard chromium plating on the surface.
3.The cutting holder, creasing wheel, position axis can be adjusted automatically.
4.Equipped with slotting phase detection device, can record the position of the slotted shaft at any time.

Theoretically ensure to return back the right position according to different size order.
5.PLC and rotary encoder control, can automatically adjust the slot distance, carton height.
6.Equipped with pre-creaser before slotting.
7.Can produce large double stitching carton, heaven and earth cover carton
8.Equipped with middle knife moving structure.

OPERATION CONTROL
1.Equipped with touch screen control, PLC detection and adjustment, and automatic positioning function.
2.Using PLC, rotary encoder and electric button all can adjust the cutting size and carton height.
3.Equipped with emergency stop device to ensure safety.

SLOTTING PHASE ADJUSTMENT
1.Equipped with high precision frequency conversion 360 degree speed adjustment, can be positive adjustment

and negative adjustment.
2.Equipped with Phase zero device, to ensure the consistency of the slot position.

CREASING WHEEL
1.The creasing wheels surface wear high quality resin, which can avoid the damage of cardboard.
2.The lower shaft of the slotting cutter is all provided eccentric sleeve structure to make it compact and accurate.

Die Cutting Unit

OPERATION CONTROL
1.Equipped with digital display and PLC and rotary encoder automatic detection function.
2.Equipped with emergency stop device to ensure safety.

PHASE ADJUSTMENT
1.The anvil cushion adjusted up and down by electric form, and can automatically move continuously in axial

direction, with each stroke of about 20mm. It can make the rubber sleeve wear uniform, prolong the service life.
2.Die cutter is adjusted by electric around 360 degree, and the die cutter shaft can be adjusted ±8mm.

DIE-CUTTING CREASING SHAFT
1.It is made of seamless steel and it surface is plated with hard chromed. The diameter is φ360mm ,and it carried

out dynamic balance calibration.
2.The surface is covered with polyurethane rubber mounting using buckle type structure, makes it convenient to replace.
3.Die cutting roller adopts independent servo motor drive for speed compensation, and the ordinary carton compensation

range is ±3mm.
4.Roller adopts mechanical differential structure to make it about automatic traverse, lateral displacement of positive and

negative 40mm. It can make the rubber sleeve wear uniform, prolong the service life.
5.The clearance of the die cutter rubber roller can be electrically adjusted and equipped with digital display, the

adjustment range of 0-12mm.
6.Die cutting can be phase adjusted and it will automatic return back to the location, and the cutting wheel will

automatically rise, so as to avoid damaging to the rubber pad.

PHASE ADJUSTMENT
1.Die cutting phase adopts planetary gear structure, which can be used for precise 360 degrees phase adjustment.
2.The phase is adjusted by electric, and has digital display and memory function. After adjustment ,it can revert to the

original die cutter position.
3.Equipped with manual adjustment left and right movement, left and right moving positive and negative 8mm.
4.The phase fixing adopts electromagnetic brake mechanism. When the machine platform separates or adjusts the phase,

the brake mechanism limits the rotation of the machine and keeps the die cut
