Automatic corrugated cardboard carton printing slotting machine of flexo printing is a machine used for printing,slotting and creasing of corrugated cardboard box, carton and etc.
| Model |
Roller Diameter (mm) |
Passable Paper Width(mm) | Valid Printing Area(mm²) |
Motor Power (kw) |
| YFQ-2000 | φ400 | 1900 | 1700x1200 | 3.0 |
| YFQ-2200 | φ400 | 2100 | 1900x1200 | 3.0 |
| YFQ-2500 | φ400 | 2400 | 2200x1200 | 4.0 |
| YFQ-2000 | φ480 | 1900 | 1700x1450 | 4.0 |
| YFQ-2200 | φ480 | 2100 | 1900x1450 | 4.0 |
| YFQ-2500 | φ480 | 2400 | 2200x1450 | 4.0 |
| YFQ-2800 | φ480 | 2700 | 2500x1450 | 4.0 |
| YFQ-3000 | φ480 | 2900 | 2700x1450 | 4.0 |
| YFQ-2500 | φ530 | 2400 | 2200x1600 | 5.5 |
| YFQ-2800 | φ530 | 2700 | 2500x1600 | 5.5 |
| YFQ-3000 | φ530 | 2900 | 2700x1600 | 5.5 |
*Machine's specification is subject to the final confirmation of seller and buyer.
In order to ensure smooth and fast operation, the machine uses an electric pressure adjust mechanism, air clutch, pneumatic die lock mechanism, high precision indexing intermittent, and over load prevention system. Additionally, it has an auto lubrication system, a speed-variable paper conveying mechanism, a vice feeding mechanism, and a preloading mechanism.All of the drive and electric components come from globally renowned companies, guaranteeing the accuracy of the die cutting and the stability of high speed operation. PLC and electronic code continuously monitor the entire machine's operation, making convenient fault diagnosis possible. Large-scale man-machine interfaces show the operating condition, problem location, and methods for troubleshooting.
Machine usage?
With the development of the world trading globalization,The demand for cartons is increasing day by day.Cartons can be used to pack all kinds of goods:Food, medicine, clothing, household appliances and so on.Our carton printing slotting machine is exactly the machine that used to respond to this demand.
Machine composition?
Generally speaking ,carton printing slotting machine usually include:Paper feeding Unit,Printing Unit,Slotting unit(optional),Die cutting Unit(optional),Stacking Unit(optional).
Machine quality?
With international famous brand ,quality of our machines are definately rock solid.To remove internal metal tension, the wallboard and key components of the entire machine undergo an aging treatment and tempering. They are produced using a CNC grinder and a high-precision machining center.
The entire machine's transmission gear is composed of premium 45Cr alloy steel, which matches colors with exceptional accuracy. It features a self-locking worm gear and worm device for quick and easy operation. An optional ceramic anilox roller is also available.
The entire machine shaft and roller are constructed from premium steel, and their surfaces have been hard chrome plated and very precise computer dynamic balance correction applied.
Our advantage?
We are a large manufacture for carton printing slotting machine in China.Our Company specialized in making carton printing slotting machinery for nearly 20 years.Our machine are competitive both in price an quality.
Interested in our carton printing machine?Please contact us !

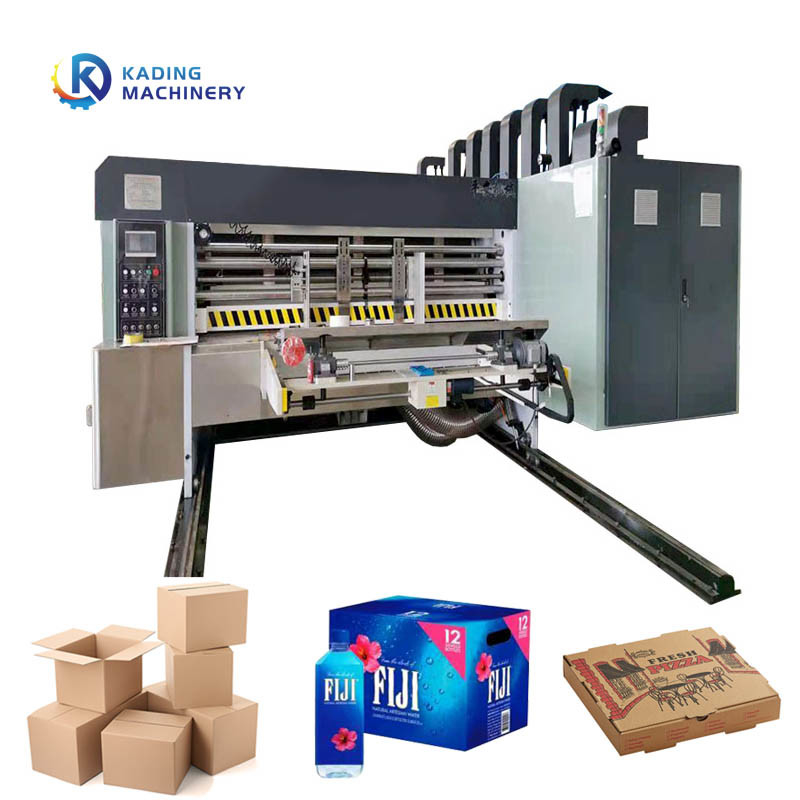

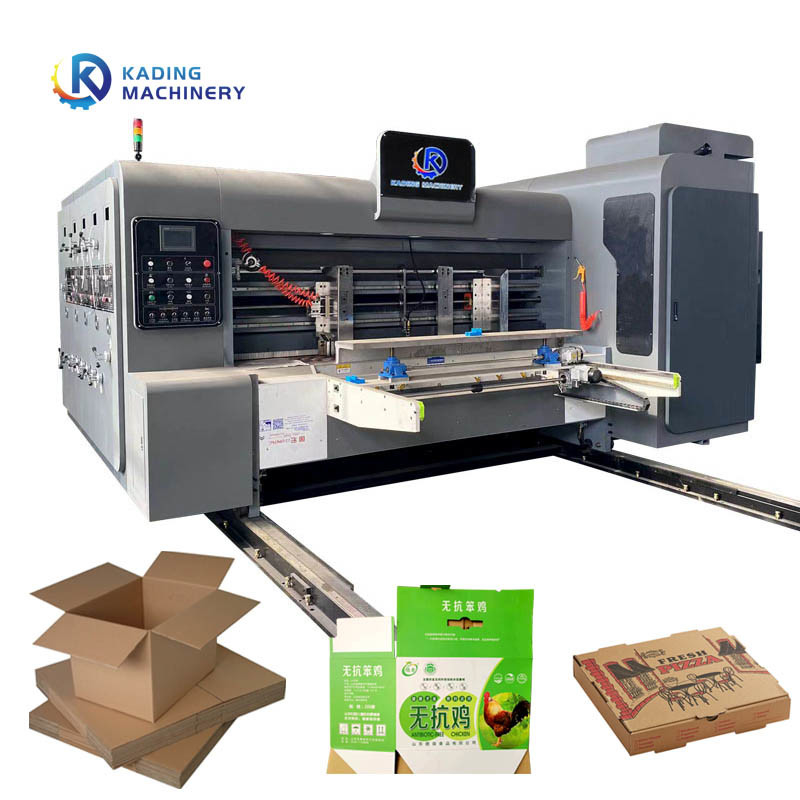

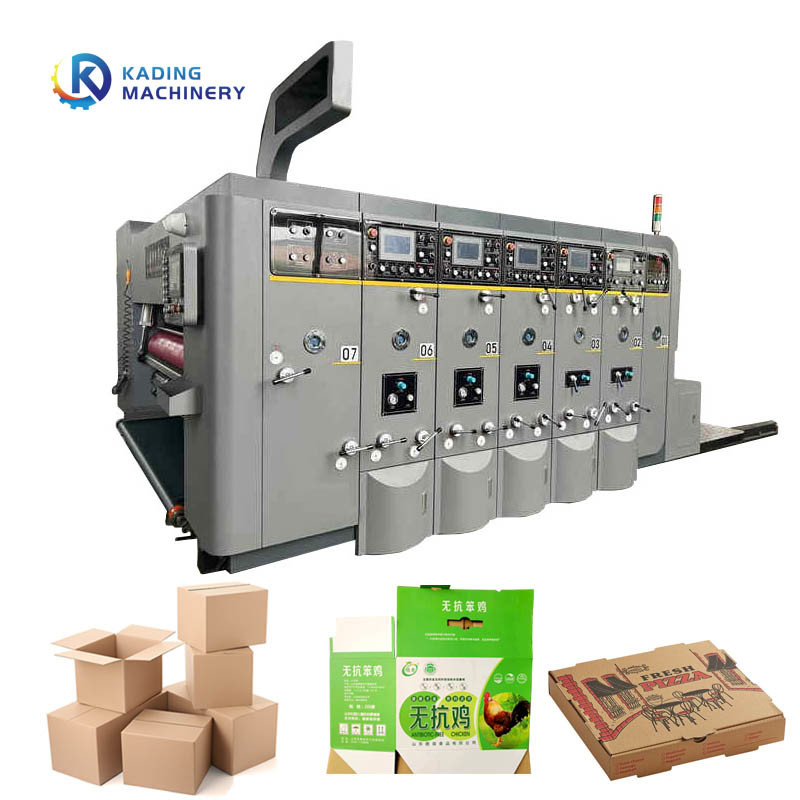

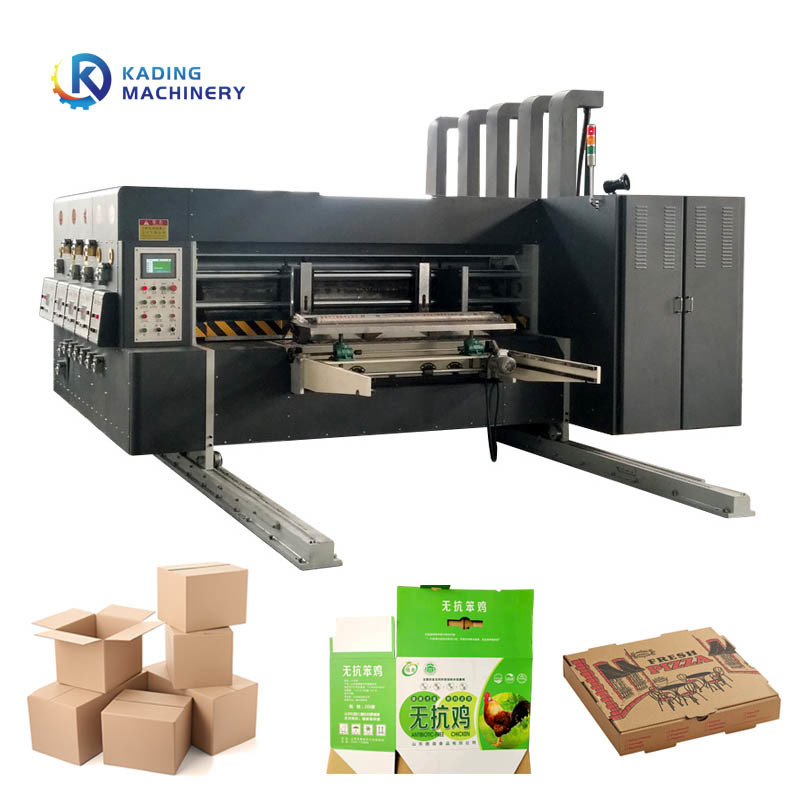

Automatic corrugated cardboard carton printing slotting machine of flexo printing description
1.Lead edge feeder with vacuum transfer;
2.The sliding seat on the feeding table is made of aluminum; alloy, which keep the machine work more smoothly
and vibrate less;
3.The paper feeding table is steel material. The wall is strong and durable;
4.Automatically count the production quantities. touch screen display;
5.Equipped with electronic, pneumatic control of skip paper feeding, in order to cope with the larger size cardboard;
transport, customers can choose to continue or skip delivery
6.The paper carrying is controlled by the cylinder, in the slotting part and stacker are provided with interlocking control
switch, as to realize the emergency stop, stop or restore the paper feeding.
REAR/LEFT/RIGHT BAFFLE
1.The pneumatic side flap device (operating side) allows flap frequency to be set on the screen.
2.The rear paper -holding frame and the front/left/right side baffles are adopted with electrical adjustment.
SEPARATION AND CLOSING
1.The machine is separation and combined with electric control device and automatic alarm bell.
2.The whole machine is fixed on the track by the main lock cylinder of the feeding part.
FEEDING ROLLER
1.The cardboard feeding rubber rolls are made of solid steel covered by wear-resistant rubber.
2.The paper feed roller adopts embossing roller, and the surface is plated with hard chromium, so that it is
wear-resistant and smooth.
ZEROING DEVICE
With zeroing and phase memory function, to ensure correct position, reduce cardboard waste.
DUST REMOVAL DEVICE
The feeding unit have a dust brush and suction. It can remove the dust on the surface effectively to ensure the
clarity of the printing, and reduce paper waste.
VACUUM SUCTION BLOWER
1.With skip feeding function attached to vacuum suction box. All suction wheels are made of ceramic material.
2.The vacuum suction box uses light pressure setting to improve printing quality.
3.The printing pressure adopt European special high inking technology of piston type regulating 0.015 to ensure
accurate to avoid the paste version problems.
INK SUPPLY SYSTEM
1.The use of one-way pneumatic diaphragm pump automatic circulation of ink, and the anilox roller and printing
plate inking system is electric adjustment.
2.Using filter to get rid of the impurity and protect the printing quality.
3.The inking bucket is made of stainless steel.
4.The ink bucket adopts special nanotechnology, non-stick ink, easy to clean.
PHASE ADJUSTMENT STRUCTURE
1.Adopts high precision planetary gear mechanism.
2.Printing phase is adjusted by PLC, touch screen and electric control 360 degrees adjustment
3.The brake motor has phase adjustment, and phase adjustment wheel can make accurate positioning.
PHASE FIXING SYSTEM
Use clutch or phase adjustment, keeping the original gear meshing point unchanged.
CUTTING HOLDER
1.The thickness of slotting knife is 7mm. Imported high quality alloy steel heat treated crescentate blade,
which has the advantages of high hardness, good toughness, strong wear resistance and so on.
2.The slotting shaft is hard chromium plating on the surface.
3.The cutting holder, creasing wheel, position axis can be adjusted automatically.
4.Equipped with slotting phase detection device, can record the position of the slotted shaft at any time.
Theoretically ensure to return back the right position according to different size order.
5.PLC and rotary encoder control, can automatically adjust the slot distance, carton height.
6.Equipped with pre-creaser before slotting.
7.Can produce large double stitching carton, heaven and earth cover carton
8.Equipped with middle knife moving structure.
OPERATION CONTROL
1.Equipped with touch screen control, PLC detection and adjustment, and automatic positioning function.
2.Using PLC, rotary encoder and electric button all can adjust the cutting size and carton height.
3.Equipped with emergency stop device to ensure safety.
SLOTTING PHASE ADJUSTMENT
1.Equipped with high precision frequency conversion 360 degree speed adjustment, can be positive adjustment
and negative adjustment.
2.Equipped with Phase zero device, to ensure the consistency of the slot position.
CREASING WHEEL
1.The creasing wheels surface wear high quality resin, which can avoid the damage of cardboard.
2.The lower shaft of the slotting cutter is all provided eccentric sleeve structure to make it compact and accurate.
OPERATION CONTROL
1.Equipped with digital display and PLC and rotary encoder automatic detection function.
2.Equipped with emergency stop device to ensure safety.
PHASE ADJUSTMENT
1.The anvil cushion adjusted up and down by electric form, and can automatically move continuously in axial
direction, with each stroke of about 20mm. It can make the rubber sleeve wear uniform, prolong the service life.
2.Die cutter is adjusted by electric around 360 degree, and the die cutter shaft can be adjusted ±8mm.
DIE-CUTTING CREASING SHAFT
1.It is made of seamless steel and it surface is plated with hard chromed. The diameter is φ360mm ,and it carried
out dynamic balance calibration.
2.The surface is covered with polyurethane rubber mounting using buckle type structure, makes it convenient to replace.
3.Die cutting roller adopts independent servo motor drive for speed compensation, and the ordinary carton compensation
range is ±3mm.
4.Roller adopts mechanical differential structure to make it about automatic traverse, lateral displacement of positive and
negative 40mm. It can make the rubber sleeve wear uniform, prolong the service life.
5.The clearance of the die cutter rubber roller can be electrically adjusted and equipped with digital display, the
adjustment range of 0-12mm.
6.Die cutting can be phase adjusted and it will automatic return back to the location, and the cutting wheel will
automatically rise, so as to avoid damaging to the rubber pad.
PHASE ADJUSTMENT
1.Die cutting phase adopts planetary gear structure, which can be used for precise 360 degrees phase adjustment.
2.The phase is adjusted by electric, and has digital display and memory function. After adjustment ,it can revert to the
original die cutter position.
3.Equipped with manual adjustment left and right movement, left and right moving positive and negative 8mm.
4.The phase fixing adopts electromagnetic brake mechanism. When the machine platform separates or adjusts the phase,
the brake mechanism limits the rotation of the machine and keeps the die cut
