Place of Origin:
DONGGUANG,CHINA
Brand Name:
KADING
Certification:
CE
Model Number:
KASG
Contact Us

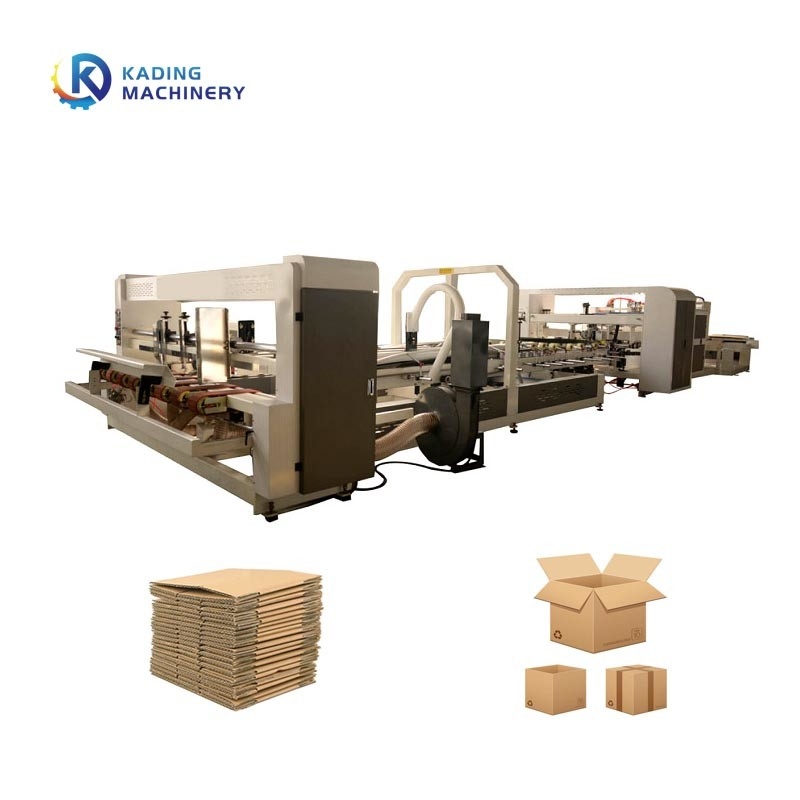

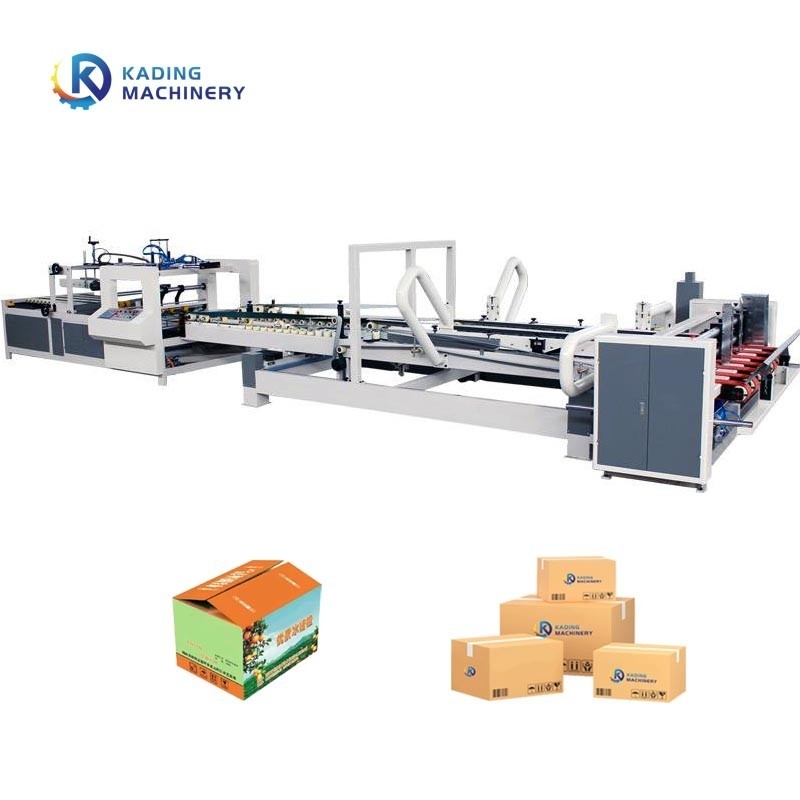

What do you need to produce strong and durable corrugated boxes? Good cardboard? Good glue? The fact is that just leave it to our machine. Next, let us take a look at the fully automatic carton folding gluing machine produced by our factory.
| Max.size(A+B)x2 | 2600mm | Min.length A | 170mm |
| Min.size(A+B)x2 | 600mm | Max.height D | 900mm |
| Max.size(C+D+C) | 1200mm | Min.height D | 150mm |
| Min.size(C+D+C) | 270mm | Max.tongue width E | 40mm |
| Max. rock cover C | 60mm | Max feeding height | 900mm |
| Min rock cover C | 380mm | Max.length A | 770mm |
| Max width B | 530mm | Min.width B | 130mm |
| Working speed (nail/min) | 800mm | Nail number | 1-99 |
*Machine's specification is subject to the final confirmation of seller and buyer.
The first unit that catches the eye is the paper feeding section of the fully automatic carton folder gluer. It mainly relies on the paper feeding belt to transport cardboard into the carton gluing machine. This design effectively improves work efficiency and greatly reduces labor costs. The rubber coating wheel adopts a spray-type design, which effectively reduces the waste of glue. The rubber wheel is simple and easy to clean.
The folding part is equipped with guide rails to assist folding, ensuring that the machine can operate at high speed while ensuring the bonding quality of each carton. The double-boom design above ensures the stability and service life of the machine, making it truly strong and durable.
The stacking part is used to stack formed cartons. Users can set the stacking quantity according to their own needs, achieving a truly humanized design.
The maximum speed of the whole machine can reach 200 pcs/min. It is a real tool for gluing boxes and has become the choice of more and more users. At the same time, our machine has also been sold all over the world and has withstood the test of users from many countries. Test, our manufacturing road will not stop here, we will continue to shine in the field of folding gluing manufacturing
Automatic Folder Gluer Stitcher Machine Description
1. Suitable for 3 ply, 5 ply and 7 ply single-piece carton nailing and bonding;(for double pieces machine, please ask our sales for more details)
2. Nail pitch range: 40-500MM;
3. The nailing angle is 40 degrees;
4. Single and double nails can be adjusted freely, suitable for international #17 and #18 nail wires;
5. Use the forearm sorting function to change the order quickly, and the paper is in good order;
6. The wire feeding machine adopts intelligent wire feeding, which has little wear on the wire wheel;
7. The computer system adopts servo motor to ensure the stable operation;
8. The speed can reach 1050 nails/minute;
9. Low equipment failure rate (using soft bottom mold structure);
10. The swing nail head runs smoothly.
Paper Feeding Unit
Folding Unit
Stitching Unit
Stacking Unit
Cangzhou Kading Carton Machinery Manufacturing Co., Ltd's factory was founded in 2009 and is located
in Dongguang County, Cangzhou City, Hebei Province.
We are a manufacturing enterprise that produces carton making machinery, with 30 expereinced workers,
2 professional product tester, and 1 core skilled carton printer engineer; Besides, we also have a sales team
composed of a group of young people with forward thinking, we can make a professional product plan for you
according to your product needs.
Our company's self-produced product lines include carton printing machines, carton die-cutting machines,
and carton slotting machines; Our advantageous products include Carton stitching machines, Folder gluer
machines, Flute laminating machines, Single facer machines, etc.
If some related products you need are not produced by ourselves, with our mature product supply chain
system, we will also help you purchase products that satisfy you with the most competitive price and the
most guaranteed quality as the standard.
In addition to our own foreign trade business, our factory also cooperates with many trading companies,
so our products are exported to dozens of countries such as the Middle East, Africa, Southeast Asia, and
the European Union, and are well received by the majority.
There are also many brand&branded manufacturers among our customers, these factories are very relieved
to entrust the production of some products to us, which is enough to show that our quality and production
conditions are trustworthy.
Cooperate with us, benefit together!
Q: Are you a factory or a trading company?
A: We are a direct manufacturer that is located in Dongguang county, Cangzhou city. Welcome to visit our factory!
We can also have video call if you’d like an online factory tour.
Q: How do you ensure your quality?
A: 1. Trustworthy and long-term cooperative raw material suppliers;
2. Skilled&experienced engineer&workers;
3. Mature QC system;
4. Specially-assigned merchandiser;
5. Advanced production workshop.
Q: How about your after-sale service?
A: 1. Special after-sale team will be 24/7 online;
2. Can guide the installation door-to-door;
3. One-year warranty for spare parts.
Q: How many languages does your machine support?
A: Our machine supports all the languages.
Q: How long it will take to produce machine?
A: Delivery time largely depends on the machine type, for some small machine like manual stitching machine, manual
banding machine etc, usually we have stock available.
But for the large machines like carton printing die cutting machine, automatic stitching machine etc, it usually takes
around 35-50 days to produce.
Q: Can we visit your factory?
A: Sure, welcome to pay a visit for our factory, we will pick you up from airport, and will provide accommodation.
