Place of Origin:
DONGGUANG,CHINA
Brand Name:
KADING
Certification:
CE
Model Number:
KDYFQ-A
Contact Us

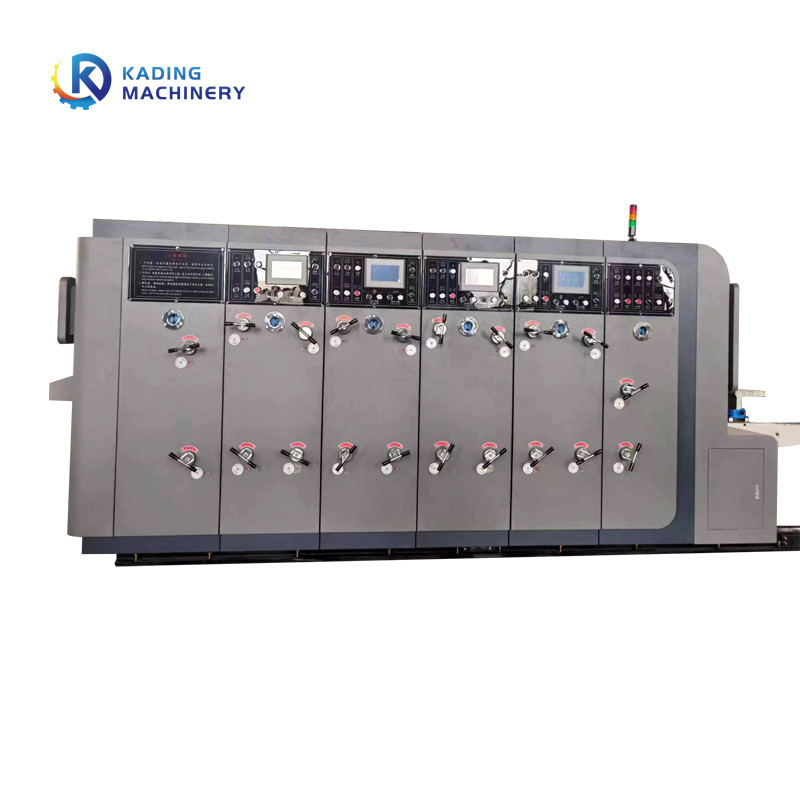

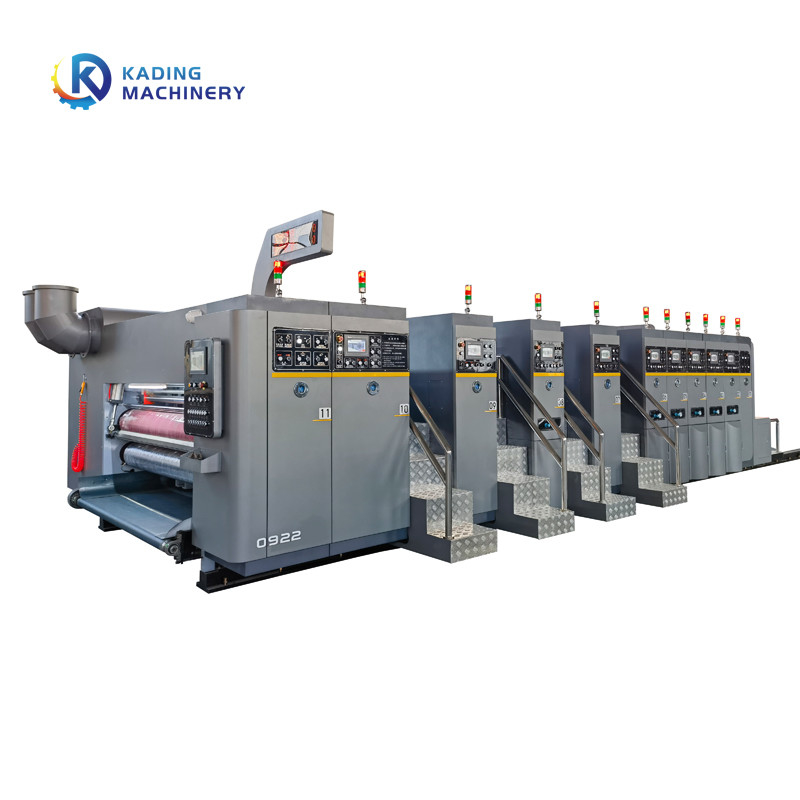

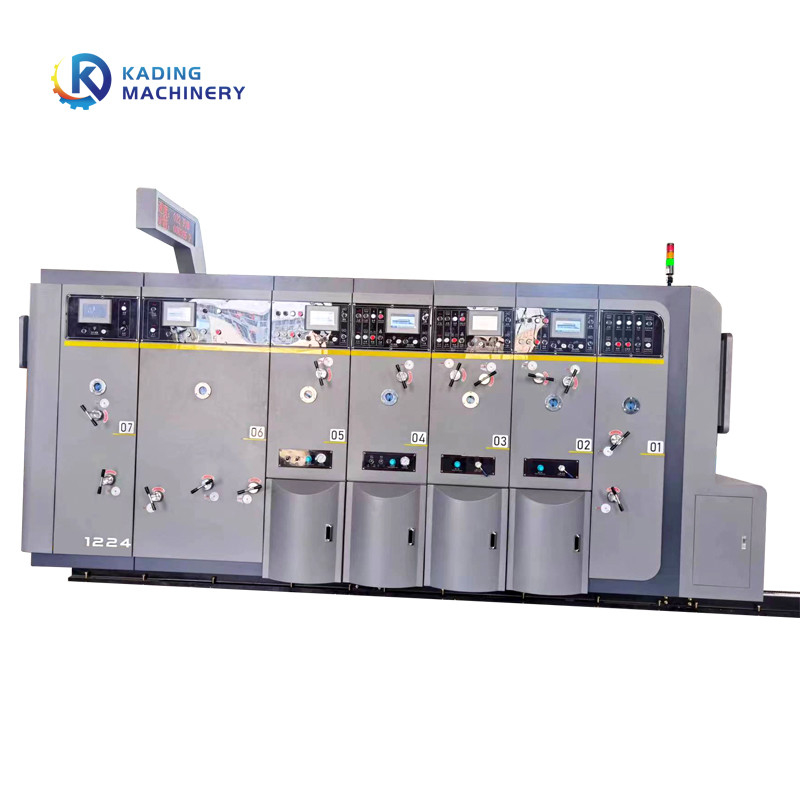

The flexographic carton printer is a versatile and reliable solution for corrugated paperboard packaging, offering businesses the ability to print in three colors. With its advanced features and capabilities, this machine provides numerous advantages that make it the ideal choice for high-quality printing. In this article, we will explore four key aspects that make the Three-Color flexographic printer a valuable investment for your packaging needs.
Specification
| Model |
Roller Diameter (mm) |
Passable Paper Width(mm) |
Valid Printing Area (mm²) |
Motor Power (kw) |
| YFQ-2000 | φ400 | 1900 | 1700x1200 | 3.0 |
| YFQ-2200 | φ400 | 2100 | 1900x1200 | 3.0 |
| YFQ-2500 | φ400 | 2400 | 2200x1200 | 4.0 |
| YFQ-2000 | φ480 | 1900 | 1700x1450 | 4.0 |
| YFQ-2200 | φ480 | 2100 | 1900x1450 | 4.0 |
| YFQ-2500 | φ480 | 2400 | 2200x1450 | 4.0 |
| YFQ-2800 | φ480 | 2700 | 2500x1450 | 4.0 |
| YFQ-3000 | φ480 | 2900 | 2700x1450 | 4.0 |
| YFQ-2500 | φ530 | 2400 | 2200x1600 | 5.5 |
| YFQ-2800 | φ530 | 2700 | 2500x1600 | 5.5 |
| YFQ-3000 | φ530 | 2900 | 2700x1600 | 5.5 |
*Machine's specification is subject to the final confirmation of seller and buyer.
The Three-Color flexographic printer delivers exceptional printing quality, ensuring stunning results for your corrugated paperboard packaging. Its advanced technology and precise color control guarantee sharp and vibrant prints, enhancing the visual appeal of your packaging. With the ability to print in three colors, you can create eye-catching designs and captivate consumers, effectively differentiating your products in the market.
Efficiency is crucial in the packaging industry, and the Three-Color flexographic printer excels in this aspect. This machine is designed to optimize productivity, offering fast printing speeds and efficient production processes. By streamlining your printing operations, it enables you to meet tight deadlines and efficiently handle high-volume printing requirements. Investing in this machine significantly improves operational efficiency and maximizes your output.
The Three-Color flexographic printer provides extensive customization options, empowering you to create unique and visually appealing designs for your corrugated paperboard packaging. With three colors at your disposal, you have the flexibility to bring your creative vision to life. Whether it's bold branding elements, intricate patterns, or captivating graphics, this machine enables you to tailor your packaging to align perfectly with your brand identity and engage consumers effectively.
Durability and reliability are essential factors to consider when selecting a carton printer. The Three-Color flexographic printer is built to withstand the demands of continuous printing. Its robust construction and reliable components ensure consistent performance and minimize downtime. With this machine, you can rely on its durability and reliability to meet your printing needs consistently, ensuring the high-quality standards of your packaging are maintained.
The Three-Color flexographic printer is a valuable investment for businesses seeking high-quality printing on corrugated paperboard packaging. With its superior printing quality, efficiency, customization options, and durability, this machine offers a comprehensive solution to elevate your packaging game. By investing in the Three-Color flexographic printer, you can enhance your brand image, improve operational efficiency, and create visually captivating packaging that sets your products apart from the competition.
1.Lead edge feeder with vacuum transfer;
2.The sliding seat on the feeding table is made of aluminum; alloy, which keep the machine work more smoothly
and vibrate less;
3.The paper feeding table is steel material. The wall is strong and durable;
4.Automatically count the production quantities. touch screen display;
5.Equipped with electronic, pneumatic control of skip paper feeding, in order to cope with the larger size cardboard;
transport, customers can choose to continue or skip delivery
6.The paper carrying is controlled by the cylinder, in the slotting part and stacker are provided with interlocking control
switch, as to realize the emergency stop, stop or restore the paper feeding.
REAR/LEFT/RIGHT BAFFLE
1.The pneumatic side flap device (operating side) allows flap frequency to be set on the screen.
2.The rear paper -holding frame and the front/left/right side baffles are adopted with electrical adjustment.
SEPARATION AND CLOSING
1.The machine is separation and combined with electric control device and automatic alarm bell.
2.The whole machine is fixed on the track by the main lock cylinder of the feeding part.
FEEDING ROLLER
1.The cardboard feeding rubber rolls are made of solid steel covered by wear-resistant rubber.
2.The paper feed roller adopts embossing roller, and the surface is plated with hard chromium, so that it is
wear-resistant and smooth.
ZEROING DEVICE
With zeroing and phase memory function, to ensure correct position, reduce cardboard waste.
DUST REMOVAL DEVICE
The feeding unit have a dust brush and suction. It can remove the dust on the surface effectively to ensure the
clarity of the printing, and reduce paper waste.
VACUUM SUCTION BLOWER
1.With skip feeding function attached to vacuum suction box. All suction wheels are made of ceramic material.
2.The vacuum suction box uses light pressure setting to improve printing quality.
3.The printing pressure adopt European special high inking technology of piston type regulating 0.015 to ensure
accurate to avoid the paste version problems.
INK SUPPLY SYSTEM
1.The use of one-way pneumatic diaphragm pump automatic circulation of ink, and the anilox roller and printing
plate inking system is electric adjustment.
2.Using filter to get rid of the impurity and protect the printing quality.
3.The inking bucket is made of stainless steel.
4.The ink bucket adopts special nanotechnology, non-stick ink, easy to clean.
PHASE ADJUSTMENT STRUCTURE
1.Adopts high precision planetary gear mechanism.
2.Printing phase is adjusted by PLC, touch screen and electric control 360 degrees adjustment
3.The brake motor has phase adjustment, and phase adjustment wheel can make accurate positioning.
PHASE FIXING SYSTEM
Use clutch or phase adjustment, keeping the original gear meshing point unchanged.
CUTTING HOLDER
1.The thickness of slotting knife is 7mm. Imported high quality alloy steel heat treated crescentate blade,
which has the advantages of high hardness, good toughness, strong wear resistance and so on.
2.The slotting shaft is hard chromium plating on the surface.
3.The cutting holder, creasing wheel, position axis can be adjusted automatically.
4.Equipped with slotting phase detection device, can record the position of the slotted shaft at any time.
Theoretically ensure to return back the right position according to different size order.
5.PLC and rotary encoder control, can automatically adjust the slot distance, carton height.
6.Equipped with pre-creaser before slotting.
7.Can produce large double stitching carton, heaven and earth cover carton
8.Equipped with middle knife moving structure.
OPERATION CONTROL
1.Equipped with touch screen control, PLC detection and adjustment, and automatic positioning function.
2.Using PLC, rotary encoder and electric button all can adjust the cutting size and carton height.
3.Equipped with emergency stop device to ensure safety.
SLOTTING PHASE ADJUSTMENT
1.Equipped with high precision frequency conversion 360 degree speed adjustment, can be positive adjustment
and negative adjustment.
2.Equipped with Phase zero device, to ensure the consistency of the slot position.
CREASING WHEEL
1.The creasing wheels surface wear high quality resin, which can avoid the damage of cardboard.
2.The lower shaft of the slotting cutter is all provided eccentric sleeve structure to make it compact and accurate.
OPERATION CONTROL
1.Equipped with digital display and PLC and rotary encoder automatic detection function.
2.Equipped with emergency stop device to ensure safety.
PHASE ADJUSTMENT
1.The anvil cushion adjusted up and down by electric form, and can automatically move continuously in axial
direction, with each stroke of about 20mm. It can make the rubber sleeve wear uniform, prolong the service life.
2.Die cutter is adjusted by electric around 360 degree, and the die cutter shaft can be adjusted ±8mm.
DIE-CUTTING CREASING SHAFT
1.It is made of seamless steel and it surface is plated with hard chromed. The diameter is φ360mm ,and it carried
out dynamic balance calibration.
2.The surface is covered with polyurethane rubber mounting using buckle type structure, makes it convenient to replace.
3.Die cutting roller adopts independent servo motor drive for speed compensation, and the ordinary carton compensation
range is ±3mm.
4.Roller adopts mechanical differential structure to make it about automatic traverse, lateral displacement of positive and
negative 40mm. It can make the rubber sleeve wear uniform, prolong the service life.
5.The clearance of the die cutter rubber roller can be electrically adjusted and equipped with digital display, the
adjustment range of 0-12mm.
6.Die cutting can be phase adjusted and it will automatic return back to the location, and the cutting wheel will
automatically rise, so as to avoid damaging to the rubber pad.
PHASE ADJUSTMENT
1.Die cutting phase adopts planetary gear structure, which can be used for precise 360 degrees phase adjustment.
2.The phase is adjusted by electric, and has digital display and memory function. After adjustment ,it can revert to the
original die cutter position.
3.Equipped with manual adjustment left and right movement, left and right moving positive and negative 8mm.
4.The phase fixing adopts electromagnetic brake mechanism. When the machine platform separates or adjusts the phase,
the brake mechanism limits the rotation of the machine and keeps the die cut
Cangzhou Kading Carton Machinery Manufacturing Co., Ltd's factory was founded in 2009 and is located
in Dongguang County, Cangzhou City, Hebei Province.
We are a manufacturing enterprise that produces carton making machinery, with 30 expereinced workers,
2 professional product tester, and 1 core skilled carton printer engineer; Besides, we also have a sales team
composed of a group of young people with forward thinking, we can make a professional product plan for you
according to your product needs.
Our company's self-produced product lines include carton printing machines, carton die-cutting machines,
and carton slotting machines; Our advantageous products include Carton stitching machines, Folder gluer
machines, Flute laminating machines, Single facer machines, etc.
If some related products you need are not produced by ourselves, with our mature product supply chain
system, we will also help you purchase products that satisfy you with the most competitive price and the
most guaranteed quality as the standard.
In addition to our own foreign trade business, our factory also cooperates with many trading companies,
so our products are exported to dozens of countries such as the Middle East, Africa, Southeast Asia, and
the European Union, and are well received by the majority.
There are also many brand&branded manufacturers among our customers, these factories are very relieved
to entrust the production of some products to us, which is enough to show that our quality and production
conditions are trustworthy.
Cooperate with us, benefit together!
Q: Are you a factory or a trading company?
A: We are a direct manufacturer that is located in Dongguang county, Cangzhou city. Welcome to visit our factory!
We can also have video call if you’d like an online factory tour.
Q: How do you ensure your quality?
A: 1. Trustworthy and long-term cooperative raw material suppliers;
2. Skilled&experienced engineer&workers;
3. Mature QC system;
4. Specially-assigned merchandiser;
5. Advanced production workshop.
Q: How about your after-sale service?
A: 1. Special after-sale team will be 24/7 online;
2. Can guide the installation door-to-door;
3. One-year warranty for spare parts.
Q: How many languages does your machine support?
A: Our machine supports all the languages.
Q: How long it will take to produce machine?
A: Delivery time largely depends on the machine type, for some small machine like manual stitching machine, manual
banding machine etc, usually we have stock available.
But for the large machines like carton printing die cutting machine, automatic stitching machine etc, it usually takes
around 35-50 days to produce.
Q: Can we visit your factory?
A: Sure, welcome to pay a visit for our factory, we will pick you up from airport, and will provide accommodation.
