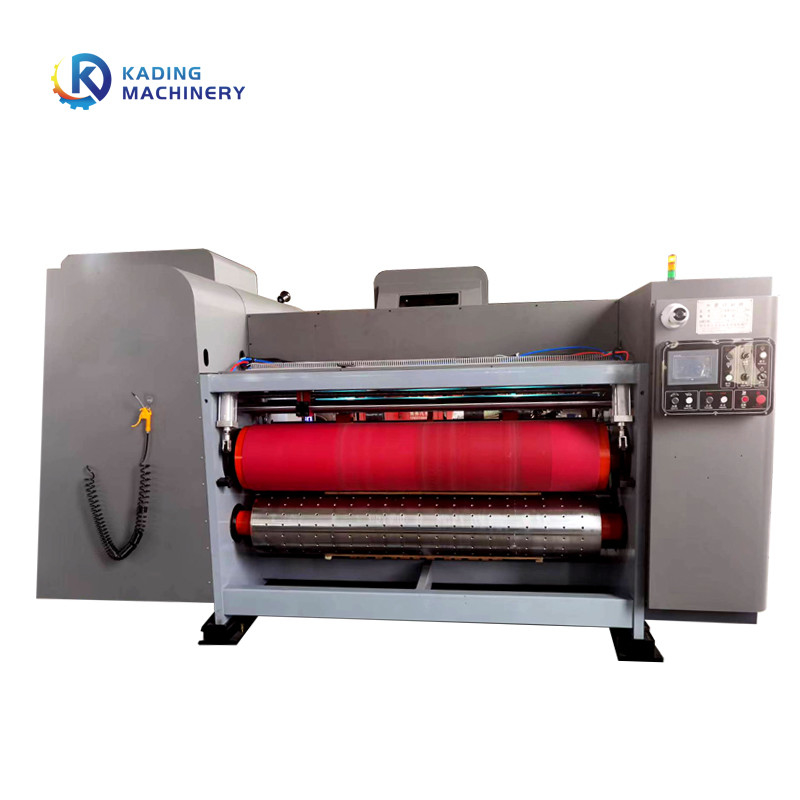

In the global market of packaging and manufacturing, efficiency, precision, and adaptability are essential for success. The Carton Box Die Cutting Machine is a cutting-edge solution that transforms the carton box production process. In this article, we will provide a comprehensive overview of the product advantages, theory and combined needs of the international market.
| Model | 2500x1200/1400/1600 | 2800x1200/1400/1600 |
| Max.working speed(pcs/min) | 160/140/120 | 160/140/120 |
| Max.feeding size(mm) | 2500x1170/1370/1570 | 2800x1170/1370/1570 |
| Skip feeding size(mm) | 2500x1370/1570/1770 | 2800x1370/1570/1770 |
| Front edge Min.feeding size(mm) | 650x350/380/400 | 700x350/380/400 |
| Pressure-free Min.feeding size(mm) | 650x450 | 650x450 |
| Max.printing area(mm) | 2450x1150/1350/1550 | 2750x1150/1350/1550 |
| Printing plate thickness(mm) | 7.2 | 7.2 |
| Cardboard size range(mm) | 2.5-10 | 2.5-10 |
| Positive knife Min.slotting space(mm) | 140x140x140x140 | 140x140x140x140 |
| Negative knife Min.slotting space(mm) | 250x80x250x80 | 250x80x250x80 |
| Max.die cutting area(mm) | 2400x1080/1280/1480 | 2700x1080/1280/1480 |
*Machine's specification is subject to the final confirmation of seller and buyer.
Advantages:
Improved Productivity: By automating the cutting process, the Carton Box Die Cutting Machine enhances production efficiency. It eliminates the need for manual labor, reduces human errors, and maximizes output, resulting in higher productivity.
Consistent Quality: With its precise cutting mechanisms and advanced technology, the machine ensures consistent quality throughout the production process. It minimizes rejects and guarantees the production of high-quality carton boxes, meeting international standards.
Cost Savings: The precision cutting and waste reduction features of the machine significantly minimize material waste. This leads to cost savings for businesses, making it an economically viable investment in the long run.
Theory and Combined Needs of the International Market:
The Carton Box Die Cutting Machine operates on the principle of die cutting, utilizing sharp dies to cut carton boards into specific shapes. This technology finds extensive application in various industries worldwide. Its flexibility allows for the production of carton boxes of different sizes, shapes, and designs, catering to diverse market needs.
In the international market, the demand for efficient and high-quality packaging solutions is on the rise. The Carton Box Die Cutting Machine addresses these needs by offering precision cutting, versatility, and enhanced productivity. Its ability to handle different carton board materials and produce consistent results positions it as a valuable asset for businesses aiming to meet international standards and cater to global markets.
1.Lead edge feeder with vacuum transfer;
2.The sliding seat on the feeding table is made of aluminum; alloy, which keep the machine work more smoothly
and vibrate less;
3.The paper feeding table is steel material. The wall is strong and durable;
4.Automatically count the production quantities. touch screen display;
5.Equipped with electronic, pneumatic control of skip paper feeding, in order to cope with the larger size cardboard;
transport, customers can choose to continue or skip delivery
6.The paper carrying is controlled by the cylinder, in the slotting part and stacker are provided with interlocking control
switch, as to realize the emergency stop, stop or restore the paper feeding.
REAR/LEFT/RIGHT BAFFLE
1.The pneumatic side flap device (operating side) allows flap frequency to be set on the screen.
2.The rear paper -holding frame and the front/left/right side baffles are adopted with electrical adjustment.
SEPARATION AND CLOSING
1.The machine is separation and combined with electric control device and automatic alarm bell.
2.The whole machine is fixed on the track by the main lock cylinder of the feeding part.
FEEDING ROLLER
1.The cardboard feeding rubber rolls are made of solid steel covered by wear-resistant rubber.
2.The paper feed roller adopts embossing roller, and the surface is plated with hard chromium, so that it is
wear-resistant and smooth.
ZEROING DEVICE
With zeroing and phase memory function, to ensure correct position, reduce cardboard waste.
DUST REMOVAL DEVICE
The feeding unit have a dust brush and suction. It can remove the dust on the surface effectively to ensure the
clarity of the printing, and reduce paper waste.
VACUUM SUCTION BLOWER
1.With skip feeding function attached to vacuum suction box. All suction wheels are made of ceramic material.
2.The vacuum suction box uses light pressure setting to improve printing quality.
3.The printing pressure adopt European special high inking technology of piston type regulating 0.015 to ensure
accurate to avoid the paste version problems.
INK SUPPLY SYSTEM
1.The use of one-way pneumatic diaphragm pump automatic circulation of ink, and the anilox roller and printing
plate inking system is electric adjustment.
2.Using filter to get rid of the impurity and protect the printing quality.
3.The inking bucket is made of stainless steel.
4.The ink bucket adopts special nanotechnology, non-stick ink, easy to clean.
PHASE ADJUSTMENT STRUCTURE
1.Adopts high precision planetary gear mechanism.
2.Printing phase is adjusted by PLC, touch screen and electric control 360 degrees adjustment
3.The brake motor has phase adjustment, and phase adjustment wheel can make accurate positioning.
PHASE FIXING SYSTEM
Use clutch or phase adjustment, keeping the original gear meshing point unchanged.
CUTTING HOLDER
1.The thickness of slotting knife is 7mm. Imported high quality alloy steel heat treated crescentate blade,
which has the advantages of high hardness, good toughness, strong wear resistance and so on.
2.The slotting shaft is hard chromium plating on the surface.
3.The cutting holder, creasing wheel, position axis can be adjusted automatically.
4.Equipped with slotting phase detection device, can record the position of the slotted shaft at any time.
Theoretically ensure to return back the right position according to different size order.
5.PLC and rotary encoder control, can automatically adjust the slot distance, carton height.
6.Equipped with pre-creaser before slotting.
7.Can produce large double stitching carton, heaven and earth cover carton
8.Equipped with middle knife moving structure.
OPERATION CONTROL
1.Equipped with touch screen control, PLC detection and adjustment, and automatic positioning function.
2.Using PLC, rotary encoder and electric button all can adjust the cutting size and carton height.
3.Equipped with emergency stop device to ensure safety.
SLOTTING PHASE ADJUSTMENT
1.Equipped with high precision frequency conversion 360 degree speed adjustment, can be positive adjustment
and negative adjustment.
2.Equipped with Phase zero device, to ensure the consistency of the slot position.
CREASING WHEEL
1.The creasing wheels surface wear high quality resin, which can avoid the damage of cardboard.
2.The lower shaft of the slotting cutter is all provided eccentric sleeve structure to make it compact and accurate.
OPERATION CONTROL
1.Equipped with digital display and PLC and rotary encoder automatic detection function.
2.Equipped with emergency stop device to ensure safety.
PHASE ADJUSTMENT
1.The anvil cushion adjusted up and down by electric form, and can automatically move continuously in axial
direction, with each stroke of about 20mm. It can make the rubber sleeve wear uniform, prolong the service life.
2.Die cutter is adjusted by electric around 360 degree, and the die cutter shaft can be adjusted ±8mm.

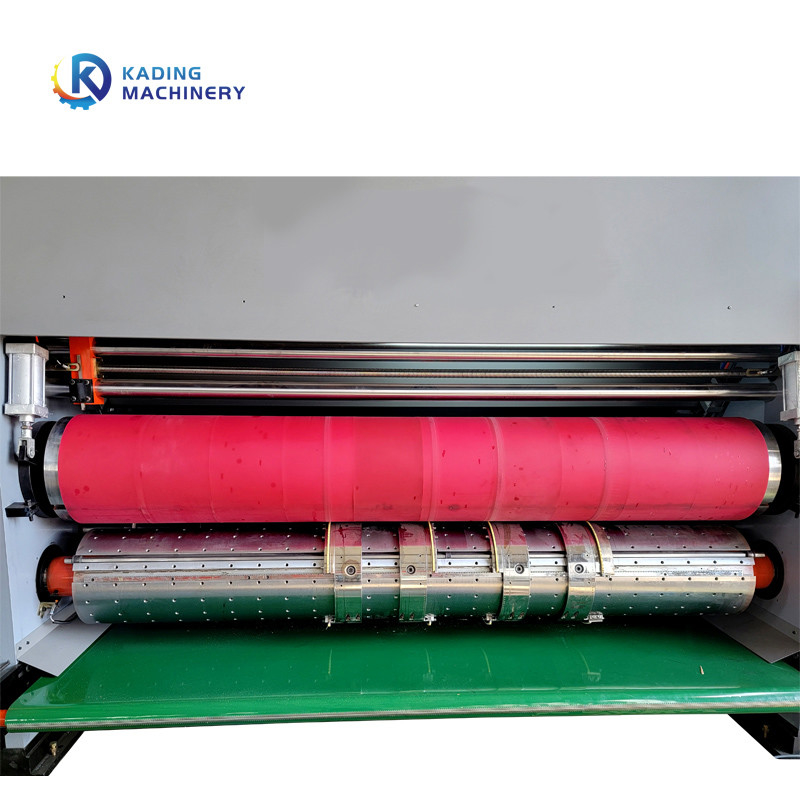

DIE-CUTTING CREASING SHAFT
1.It is made of seamless steel and it surface is plated with hard chromed. The diameter is φ360mm ,and it carried
out dynamic balance calibration.
2.The surface is covered with polyurethane rubber mounting using buckle type structure, makes it convenient to replace.
3.Die cutting roller adopts independent servo motor drive for speed compensation, and the ordinary carton compensation
range is ±3mm.
4.Roller adopts mechanical differential structure to make it about automatic traverse, lateral displacement of positive and
negative 40mm. It can make the rubber sleeve wear uniform, prolong the service life.
5.The clearance of the die cutter rubber roller can be electrically adjusted and equipped with digital display, the
adjustment range of 0-12mm.
6.Die cutting can be phase adjusted and it will automatic return back to the location, and the cutting wheel will
automatically rise, so as to avoid damaging to the rubber pad.
PHASE ADJUSTMENT
1.Die cutting phase adopts planetary gear structure, which can be used for precise 360 degrees phase adjustment.
2.The phase is adjusted by electric, and has digital display and memory function. After adjustment ,it can revert to the
original die cutter position.
3.Equipped with manual adjustment left and right movement, left and right moving positive and negative 8mm.
4.The phase fixing adopts electromagnetic brake mechanism. When the machine platform separates or adjusts the phase,
the brake mechanism limits the rotation of the machine and keeps the die cut
