Place of Origin:
DONGGUANG,CHINA
Brand Name:
KADING
Certification:
CE
Model Number:
KASG
Contact Us

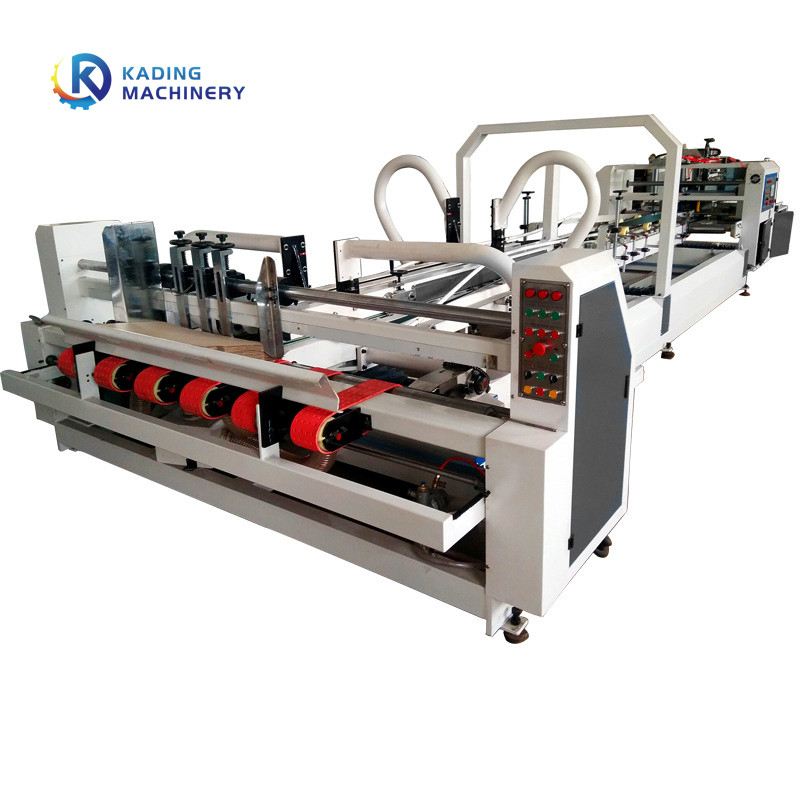

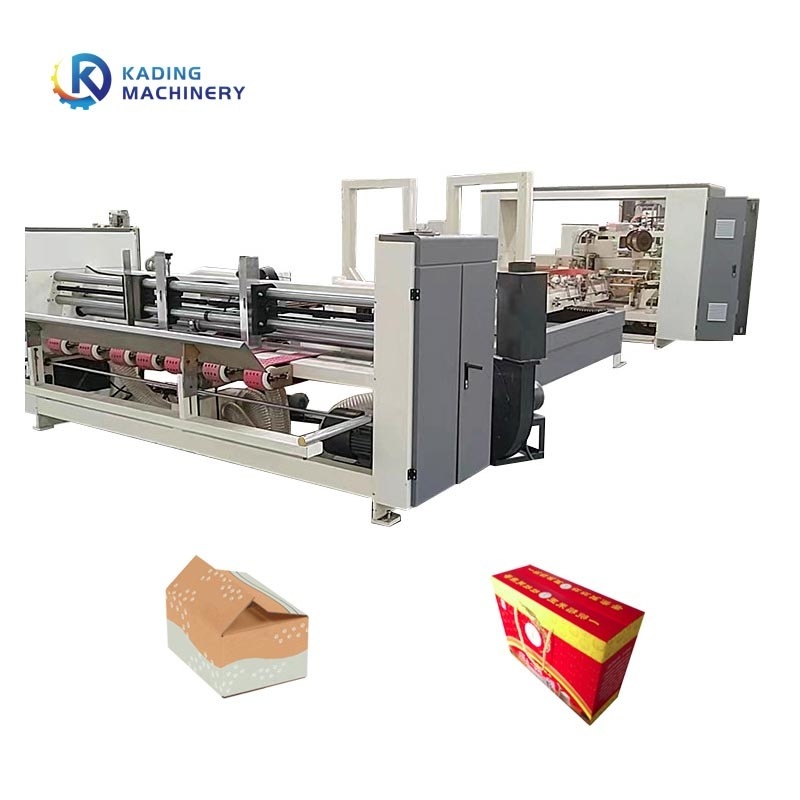

This multifunctional carton stitching and gluing machine is an automated machine designed for making pizza boxes and other cartons. It is capable of completing the stitching and gluing of cartons with a variety of functions, including automatic operation, high-precision production and flexible adjustment. This machine can meet the demand of pizza industry for carton production, improve production efficiency and ensure the quality of carton, which is a multi functional equipment suitable for carton manufacturing.
| Max.size(A+B)x2 | 2600mm | Min.length A | 170mm |
| Min.size(A+B)x2 | 600mm | Max.height D | 900mm |
| Max.size(C+D+C) | 1200mm | Min.height D | 150mm |
| Min.size(C+D+C) | 270mm | Max.tongue width E | 40mm |
| Max. rock cover C | 60mm | Max feeding height | 900mm |
| Min rock cover C | 380mm | Max.length A | 770mm |
| Max width B | 530mm | Min.width B | 130mm |
| Working speed (nail/min) | 800mm | Nail number | 1-99 |
*Machine's specification is subject to the final confirmation of seller and buyer.
Features :
1.With a gluing box speed averaging between 8000-10000pcs per hour, Carton box stitching and gluing machine operates at a rapid pace, significantly enhancing production efficiency.
2.This system features automatic feeding, glue application, folding, calibration, and counting, requiring just two individuals to oversee the entire process from start to finish.
3.Utilizing a suction belt feeding mechanism, Carton box stitching and gluing machine boasts a straightforward design, swift operation, and precise paper handling.
4.Employing a nail tooth belt for feeding ensures precise feeding accuracy, while its secondary indentation function enhances the precision of folding cartons.
5.Featuring secondary rectification capabilities, Carton box stitching and gluing machine eliminates inconsistencies in size, thereby reducing rejection rates.
6.Equipped with a differential correction regulation function, Carton box stitching and gluing machine eliminates shearing and misalignment issues, resulting in more accurate folding.
7.The paperboard receiving unit facilitates automatic counting, shape adjustment, and stacking, ensuring all cartons are neatly piled up in predetermined quantities for efficient output at high speeds and precision.
8.Additionally,Carton box stitching and gluing machine can be seamlessly integrated with an automatic strapping machine for enhanced packaging automation.
9.Efficient energy conservation and environmental protection is our highest pursuit. The whole machine electrical equipment refers to the European standard, in line with the concept of safe and reliable work, easy operation and maintenance design and production.
10.Moreover, this advanced Carton box stitching and gluing machine incorporates robust safety features to protect operators and minimize downtime. It is built with precision engineering, adhering to the highest industry standards, ensuring durability and long-term reliability.
If you need Multi-Functional Carton Box Stitching And Gluing Machine Automatic For Pizza Box Making, please contact us!
Automatic Folder Gluer Stitcher Machine Description
1. Suitable for 3 ply, 5 ply and 7 ply single-piece carton nailing and bonding;(for double pieces machine, please ask our sales for more details)
2. Nail pitch range: 40-500MM;
3. The nailing angle is 40 degrees;
4. Single and double nails can be adjusted freely, suitable for international #17 and #18 nail wires;
5. Use the forearm sorting function to change the order quickly, and the paper is in good order;
6. The wire feeding machine adopts intelligent wire feeding, which has little wear on the wire wheel;
7. The computer system adopts servo motor to ensure the stable operation;
8. The speed can reach 1050 nails/minute;
9. Low equipment failure rate (using soft bottom mold structure);
10. The swing nail head runs smoothly.
Paper Feeding Unit
Folding Unit
Stitching Unit
Stacking Unit
Cangzhou Kading Carton Machinery Manufacturing Co., Ltd's factory was founded in 2009 and is located
in Dongguang County, Cangzhou City, Hebei Province.
We are a manufacturing enterprise that produces carton making machinery, with 30 expereinced workers,
2 professional product tester, and 1 core skilled carton printer engineer; Besides, we also have a sales team
composed of a group of young people with forward thinking, we can make a professional product plan for you
according to your product needs.
Our company's self-produced product lines include carton printing machines, carton die-cutting machines,
and carton slotting machines; Our advantageous products include Carton stitching machines, Folder gluer
machines, Flute laminating machines, Single facer machines, etc.
If some related products you need are not produced by ourselves, with our mature product supply chain
system, we will also help you purchase products that satisfy you with the most competitive price and the
most guaranteed quality as the standard.
In addition to our own foreign trade business, our factory also cooperates with many trading companies,
so our products are exported to dozens of countries such as the Middle East, Africa, Southeast Asia, and
the European Union, and are well received by the majority.
There are also many brand&branded manufacturers among our customers, these factories are very relieved
to entrust the production of some products to us, which is enough to show that our quality and production
conditions are trustworthy.
Cooperate with us, benefit together!
Q: Are you a factory or a trading company?
A: We are a direct manufacturer that is located in Dongguang county, Cangzhou city. Welcome to visit our factory!
We can also have video call if you’d like an online factory tour.
Q: How do you ensure your quality?
A: 1. Trustworthy and long-term cooperative raw material suppliers;
2. Skilled&experienced engineer&workers;
3. Mature QC system;
4. Specially-assigned merchandiser;
5. Advanced production workshop.
Q: How about your after-sale service?
A: 1. Special after-sale team will be 24/7 online;
2. Can guide the installation door-to-door;
3. One-year warranty for spare parts.
Q: How many languages does your machine support?
A: Our machine supports all the languages.
Q: How long it will take to produce machine?
A: Delivery time largely depends on the machine type, for some small machine like manual stitching machine, manual
banding machine etc, usually we have stock available.
But for the large machines like carton printing die cutting machine, automatic stitching machine etc, it usually takes
around 35-50 days to produce.
Q: Can we visit your factory?
A: Sure, welcome to pay a visit for our factory, we will pick you up from airport, and will provide accommodation.
